Mastering Manual Transmission Repair: Diagnostics, Fixing, & Overhauls

While manual transmissions are famous for their durability, the mechanical connection between your gear stick and your wheels means components inevitably wear down. When a gearbox starts acting up, ignoring the signs can turn a simple bearing or seal replacement into a catastrophic failure.

Understanding how to diagnose, tear down, and repair a manual transmission ensures your vehicle stays reliable, shifts smoothly, and handles power efficiently.

1. Common Signs Your Transmission Needs Repair

Before dropping the gearbox, accurate diagnostics save hours of unnecessary work. Look out for these distinct warning signs:

Grinding During Shifts: If you hear or feel a harsh grind when moving from one gear to another, your synchronizers (synchros)—the brass rings that match gear speeds—are likely worn down.
Slipping Out of Gear: If the gear stick spontaneously pops back into neutral while driving, you are likely dealing with worn shift forks, a stretched shift cable, or damaged gear teeth.
Whining or Clunking Noises: A persistent whining or growling noise that changes pitch with engine speed usually points to failing input or output shaft bearings.
Hard Shifting: Struggling to force the lever into gear often indicates a dragging clutch assembly or failing hydraulic cylinders rather than an internal mechanical fault.

2. The Internal Anatomy

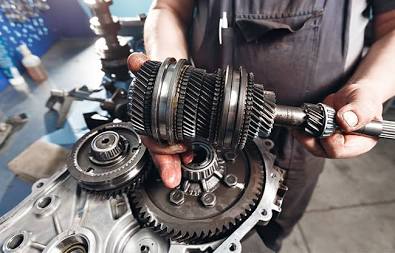

To successfully repair a manual transmission, you need to understand how the internal components interact. When a gearbox is opened up, the components are meticulously laid out to inspect for wear.

Key internal components include:

The Input Shaft: Delivers rotational power from the engine clutch directly into the transmission.
The Countershaft (Layshaft): Contains a solid row of forged gears that mesh directly with the main shaft gears.
The Main Shaft (Output Shaft): Holds the individual, free-spinning speed gears and the sliding synchronizer sleeves that lock them into place to drive the wheels.

3. The Structural Repair Process

Rebuilding or repairing a manual gearbox is a highly technical process requiring clean workspaces, specialized pullers, and strict adherence to torque specifications.

1.Removal and Exterior De-greasing:Step 1.

Disconnect the vehicle battery, unbolt the driveshaft/cv axles, drop the transmission linkage, and pull the unit from the vehicle. Clean the exterior thoroughly to ensure zero dirt or grit falls into the casing during teardown.

2.Casing Disassembly and Visual Inspection:Step 2.

Unbolt the transmission housing halves. Carefully pull the shafts out as assemblies. Inspect all gear teeth for pitting, chips, or unusual wear patterns, and check the magnetic drain plug for excessive metal shavings.

3.Component Rebuilding:Step 3.

Using a hydraulic press and bearing pullers, strip the shafts of worn bearings and synchro rings. Press on new components, ensuring that individual needle bearings and thrust washers are coated in assembly lube and installed in their exact original orientation.

4.Reassembly and Shimming:Step 4.

Lay the main shaft and countershaft assemblies back into the casing simultaneously. Measure and adjust end-play (clearance) using precise shims according to factory specs to prevent the shafts from moving back and forth under load. Seal the casing halves with a high-quality oil-resistant sealant.
